拉鏈染色機 TS-TZD

Zipper dyeing machine

適用于染純棉、滌棉、滌毛、晴綸、尼龍、麻棉、羊毛等各種纖維，配合各種類型紗架，可染不同織物，如筒子紗、絞紗、經軸紗、拉鏈、粘扣帶、網布和散毛等，染色、精煉、漂白后處理。

This machine is suitable for dyeing of various kinds of fibers such as cotton, polyester cotton, polyester , nylon, wool and so on. Using different kinds of creels it is capable of dyeing various yarns, such as cheese, hank, yarn on warp beam, loose wool, etc., dyeing, refining, bleaching after treatment.

  技術特點 Features

   1. 低浴比設計，節省染料、助劑和能源，減少排污量，提高經濟效益。

Low liquor bath than the design, saving dyes, additives and energy, reduce emissions, improve economic efficiency.

  2. 采用新型混流泵或不銹鋼離心泵，具有高效能、高效率且低能耗，解決了傳統混流泵揚程偏低的問題。

The use of new mixed-flow pump or stainless steel centrifugal pump, with high efficiency, high efficiency and low energy consumption, to solve the traditional low-flow pump head problem.

  3. 流量控制系統：可根據各類紗線的需要作流量的無級調節控制，如采用變頻驅動主泵配備自動感應器隨時調節流量和水壓，使染色效果達到完美。

Flow control system: According to the needs of various types of yarn flow control stepless adjustment, such as the use of variable frequency drive the main pump with automatic sensor at any time to adjust the flow and water pressure, so that the dyeing effect to perfect.

  4. 先進的全自動化控制系統：控制箱采用全自動或半自動型式，專為染色機設計的電腦控制器可同時顯示溫度曲線、步驟和輸出，可進行溫度控制曲線加料、速度控制等；全自動控制進水、排水、升溫、恒溫、降溫及清洗等染色工藝要求，可連接中央集中控制系統，操作簡便。

Advanced automatic control system: control box with automatic or semi-automatic type, designed specifically for the dyeing machine computer controller can display the temperature curve, steps and output, can be temperature control curve feeding, speed control, etc .; automatic control into Water, drainage, heating, temperature, cooling and cleaning dyeing process requirements, can be connected to the central centralized control system, easy to operate.

   5. 快速的清洗系統，有效地節省了清洗時間和用水量。

Fast cleaning system, effectively saving the cleaning time and water consumption.

  6. 快速進水、排水功能，在重復的染色加工中節省加工時間。

Quick fill, drain function, in the repeated dyeing processing to save processing time.

   7. 溢流式加料系統，可進行動態化料，有效地控制加料的速率和量，保證均勻的上染率。

Overflow feed system, can be dynamic material, effectively control the rate of feeding to ensure a uniform dyeing rate.

標準配置  Standard configuration

1. 染缸和所有與染液接觸部分均采用優質、高級、抗腐蝕不銹鋼制造。

Main tank and all dyeing liquid contact part is made of high quality, advanced,corrosion resistant stainless steel manufacturing.

   2. 垂直式缸體，配備平衡重錘開關缸蓋及手動控制缸鎖，并配備安全聯鎖裝置。

Vertical cylinder, equipped with balanced hammer switch cylinder head and manual control cylinder lock, and equipped with safety interlock device.

   3. 高精度感測水位控制系統。

High - precision sensing water level control system.

  4. 敞開式加料桶配輔加料系統，平衡（回流）系統。

Open-type feeding bucket with auxiliary feeding system, balanced (reflow) system.

   5. 結構緊湊的液流換向器及流向轉向自動控制系統。

Compact flow commutator and flow steering automatic control system.

6. 新穎高效的管道外置式熱交換器。

Innovative and efficient piping external heat exchangers.

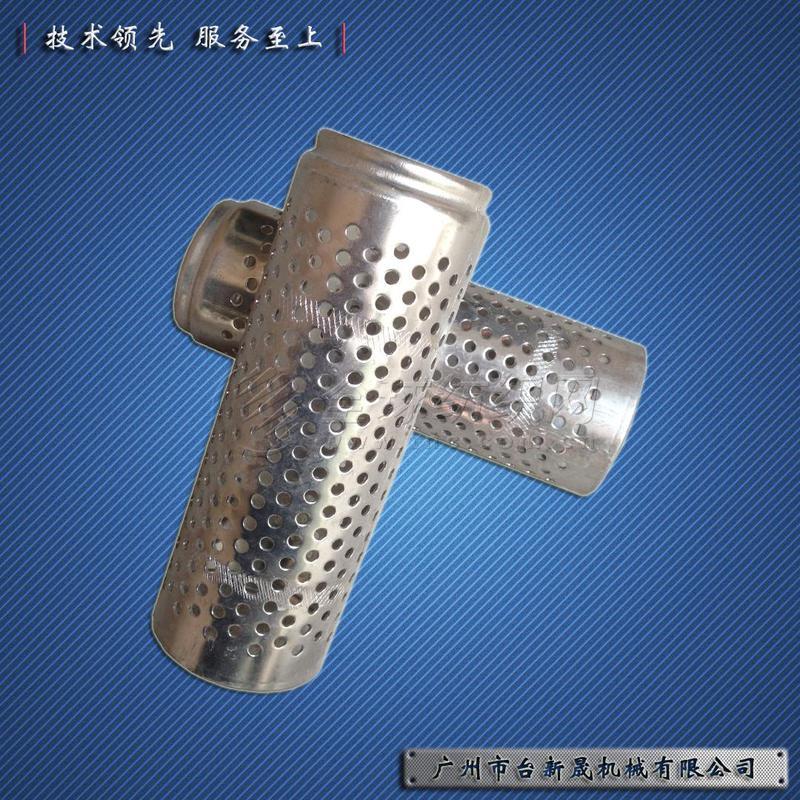

7. 標準小盤頭拉鏈管規格：Φ180*800（mm），每支拉鏈管載量按8-10Kg計算。

Standard small zipper bobbin specifications: Φ180 * 800 (mm), each zipper bobbin can be loaded 8-10Kg.

8. 標準大盤頭拉鏈管規格：Φ400*1000（mm），每支拉鏈管載量按60Kg計算。

Standard big zipper bobbin specifications: Φ400*1000（mm）, each zipper bobbin can be loaded 60Kg.

技術參數 Parameter
