ZJ-008 風琴褶摺景機

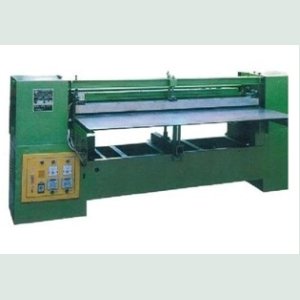

ZJ-008 Automatic Accordion Pleating Machine
主要特點:
Main features:
該機是化纖、混合織物、紙、多層濾紙、無紡布、PVC 等熱定型打折的專用設備。
定型后的織物可制作窗簾和各類裝飾。
Pleating machine of “accordion”type which effects big vertical pleats,available in different
working widths and pleats depth. The heating of cylinder is electrical in oil bath. It is particularly
suitable to pleat fabrics,mosquito netting, papers,composite fibers and every kind filters.
Fields of use:
Home textile, air/water filtration, bellows cover guides
主要技術參數:
Main technical parameter:
工作寬度 Working width |
0-1500mm |
摺景速度 Pleating speed |
0-100 pleats/min |
打折厚度 Pleating thickness |
0.1-3mm |
打折高度 Pleating height |
8-50mm |
功率 Power |
9.1KW |
外形尺寸 Overall dimension |
L:2640mm×W:1400mm×H:1800mm |
重量 Net weight |
1000KGS |
