熱轉移印花機原理：

transfer printing principal：

熱轉移印花是近幾年來國際上逐漸興起的一種印染新工藝。首先，用高級印刷技術將特殊的印染（水性或者油性），把所有需要的花色圖案印刷到特種的紙上，制成帶有各種花式的轉移印花紙，然后在轉移印花機上，將轉移印花紙上印有圖案的一面與被印織物密合后，通過熱和壓力的作用，使用花紙的染料產生升華作用，轉移到被印織物上，在被印織物上形成所需的各種圖案。

   本廠引進意大利并根據市場需求不斷專研、改進、開發zy系列轉移印花機，本機配套自動控邊進布器和自動驗卷機，使整個印布過程更為方便。

transfer printing is a new technology developed during recent years. *****ly, print kinds of pattern on the transfer printing paper through special printing technology (by water-based or solvent-based dye). secondly, under the action of heat and pressure of heat transferring machine, the sublimated dye will be transferred to the textile which just being printed. by the two steps above, the required patterns are fastened on the textile.

this machine has self-contained automatic selvage-control entrance keeper and automatic inspecting and rolling machine, which make the whole printing process more convenient.

主要特點：

main features:

1.整機式主機機架，堅固不易變形、轉動，導布機械設計靈巧，操作簡便。機器的主要部件主滾筒內部設有內循環系統。通過電加熱、油導熱，使?jié)L筒表面溫度控制在±1℃左右。
2.采用pid自動溫控儀，自動調節保溫電流控制精度高。
3.手動退毯帶裝置，升降溫時脫開毯帶，延長毯帶使用壽命。
4.本機設有布邊紙及墊紙裝置，降低毛毯污染，減少清洗次數。
5.轉印后之成品免處理，花樣色彩鮮明，柔軟光麗，保持色質經久不變。
6.印花速度控制采用變頻控制。
7.溫度范圍：220-250℃

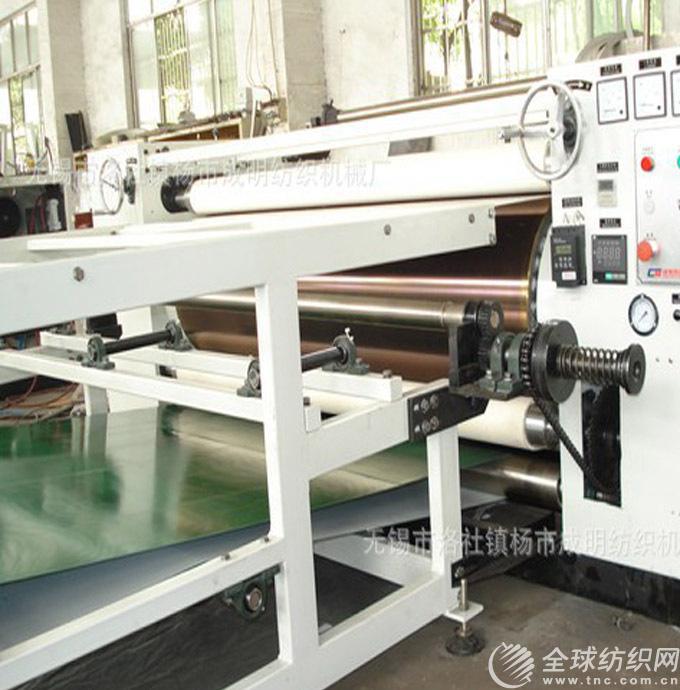

1. the principal machine frame is fixed firmly and the rotation and cloth guiding design is smart & convenient. there is an internal circulation system inside roller, which can control roller surface temperature within±1℃ through internal electric-heating and oil-heat-transforming;

2. adopt pid automatic temperature-control instrument, which can automatically keeping high accuracy of electric current control;

3. the manual blanket-belt reversal device can make the blanket-belt runoff when heating up or cooling down, so it can extend service life of the blanket-belt;

4. there is a paper-backing device for selvage-paper, which can decrease the pollution of the blanket, and reduce the cleaning times;

5. the finished fabric does not need any further treatment. the printed fabric is full of vivid & bright color, soft and beautiful outlook, also the printed color is durable.

6. adopt stepless variable speed control;

7. printing temperature range: 220-250℃
