無錫市洛社鎮楊市成明紡織機械廠

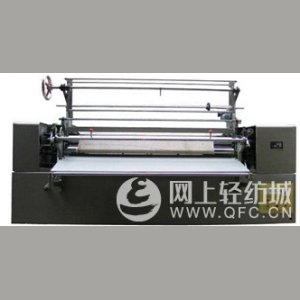

ZJ-217 多功能摺景機
ZJ-217 Universal Automatic Pleating Machine
主要特點:
Main features:
該機為多功能定型設備,可分別折出直紋、波浪紋和竹葉紋,通過變景和拉景裝置,可折出組合紋(直紋、波浪紋、竹葉紋&直紋、竹葉紋&拉景)。定型面料采用化纖,混紡織物,皮革,紙等,適用于服裝、裙裝、圍巾、燈罩和各種裝飾用。該機可配置電腦控制系統,操作將更簡便。
ZJ-217 Universal Automatic Pleating Machine can make the most popular and traditional pleat designs as straight (knife) pleat, box pleat, bamboo leaf pleat and wave pleat on clothes for ladies skirts, tops, frocks, shoes, window curtain, and artificial leather and so on. We offer extra knife devices for you to make more designs. You may create a variety of pleat designs by changing the knife and setting. It brings about four hundred diverse pleat designs totally. It is amazing.
Fields of use:
Classic fashion, sportswear and leisurewear, lingerie and beachwear, home textile and upholstery, footwear and leather goods, ribbons, accessories and promotional.
主要技術參數:
Main technical parameter:
工作寬度Working width |
0-1600mm |
摺景速度Pleating speed |
0-100 pleats/min |
面折寬度Pleating width |
3-30mm |
功率Power |
9KW |
外形尺寸Overall dimension |
L:3300mm×W:1650mm×H:1750mm |
重量Net weight |
1300KGS |
